Phrozen LCD Screen Replacement Mini 8K

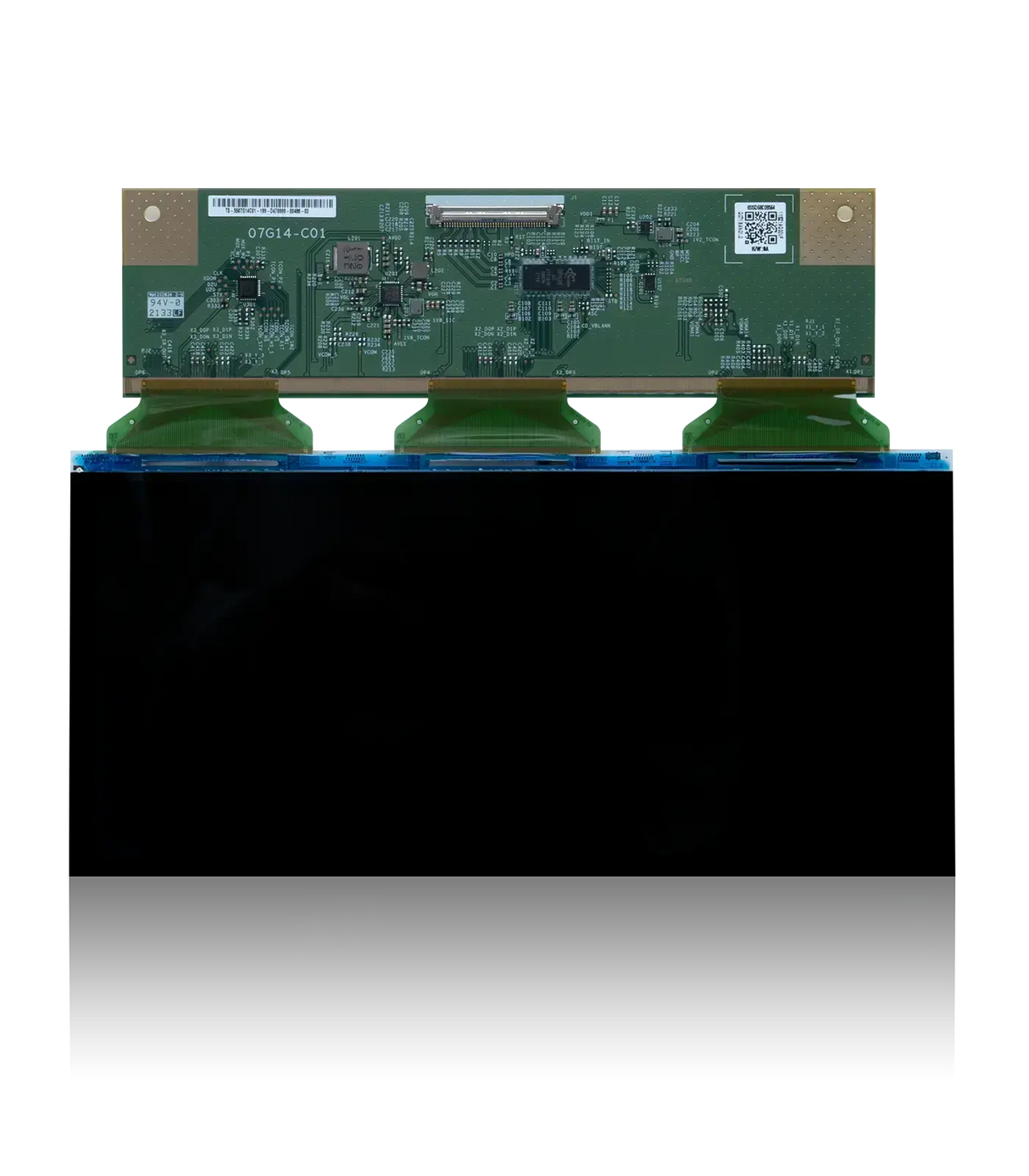

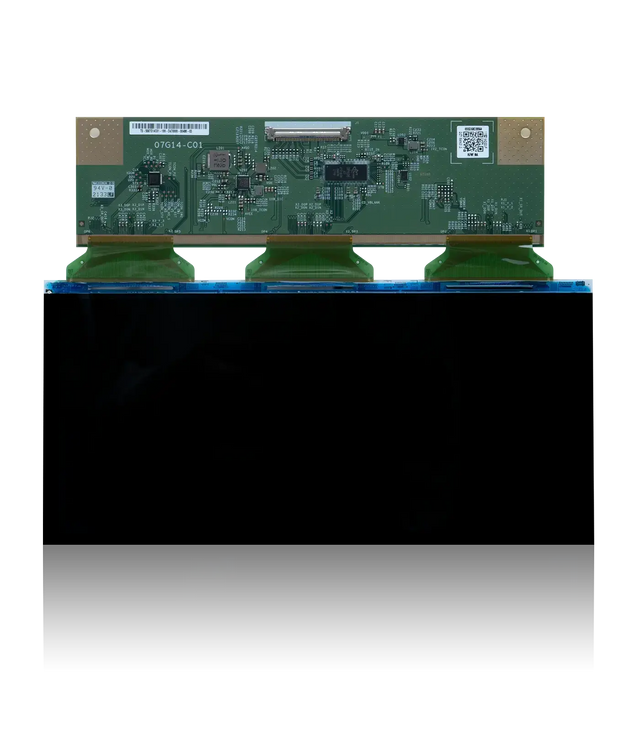

Phrozen LCD Screen Replacement Sonic Mini 8K: Genuine 7.1-Inch 8K Mono LCD
The Phrozen LCD Screen Replacement for the Sonic Mini 8K is the genuine OEM 7.1-inch 8K monochrome LCD panel for this printer. This is the correct replacement for the original Sonic Mini 8K — it is not compatible with the Mini 8KS, which uses a different panel. Confirm your printer model before ordering.
Monochrome LCD technology is the reason MSLA resin printers achieve faster cure times and more consistent layer exposure than older RGB LCD printers. A monochrome panel passes significantly more UV light per pixel than an RGB equivalent, which means each layer cures faster and more evenly across the full build area. The 8K pixel density across a 7.1-inch panel produces a native XY resolution of approximately 22 µm, which is what gives the Mini 8K its fine detail capability. When the LCD degrades, that resolution and exposure consistency degrades with it.
LCD panels in MSLA printers degrade through UV-induced backlight decay, thermal stress from extended print sessions, and cumulative exposure cycling. The visible signs are reduced print detail, uneven curing across the build plate, layer banding, and an increase in failed prints. Replacing the LCD with a genuine Phrozen panel restores the printer to its original exposure profile and detail ceiling.
The genuine Phrozen replacement matches the original panel's connector type, dimensions, and optical characteristics. A non-genuine panel may not match the exposure settings the printer firmware is calibrated for, which can introduce curing inconsistencies that defeat the purpose of the replacement.
- Screen size: 7.1 inches
- Resolution: 8K monochrome
- Native XY resolution: ~22 µm
- Compatible printer: Phrozen Sonic Mini 8K only (not Mini 8KS)
- Includes: LCD module, ribbon cable, installation guidance
3D Cast is Australia's official Phrozen distributor, stocking genuine Phrozen LCD replacement screens with fast shipping Australia wide and direct technical support.
Specifications
Specifications for the Phrozen Mini 8K LCD replacement panel.
Specifications
Specifications for the Phrozen Mini 8K LCD replacement panel.
3D Cast is the official Australian distributor for Phrozen Technology, stocking genuine Phrozen spare parts for the full Phrozen printer range from our Bairnsdale, Victoria warehouse. Warranty claims are managed locally with no international returns required.
Frequently Asked Questions
No. This panel is for the original Sonic Mini 8K only. The Mini 8KS uses a different panel. Confirm your exact printer model before ordering.
A monochrome panel passes significantly more UV light per pixel than an RGB equivalent, which means each layer cures faster and more evenly across the full build area — this is what gives the Mini 8K its speed and detail advantage.
Common signs include reduced print detail, uneven curing across the build plate, layer banding, and an increase in failed prints.
Yes, this is strongly recommended. A screen protector is a low-cost sacrificial layer that absorbs resin spills and scratches, protecting the LCD from damage that would otherwise shorten its working life.
Yes. 3D Cast is Phrozen's official Australian distributor, so you're getting a genuine OEM panel matching the original connector type, dimensions, and optical characteristics.
Yes, for 3 months against manufacturing defects, excluding damage caused by human factors such as incorrect installation or resin contact. 3D Cast manages all Phrozen warranty claims locally.
