Phrozen LCD Screen Replacement Mighty 12k

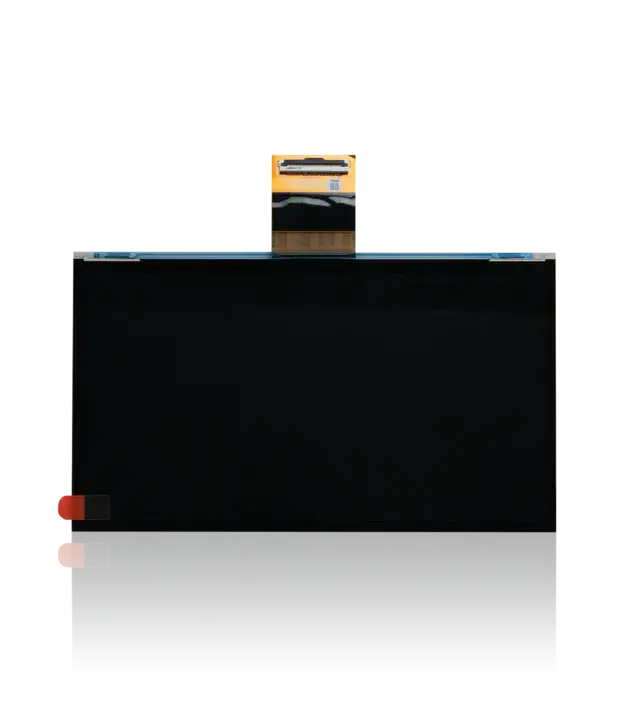

Phrozen LCD Screen Replacement Sonic Mighty 12K: Genuine 10.1-Inch 12K Mono LCD
The Phrozen LCD Screen Replacement for the Sonic Mighty 12K is the genuine OEM 10.1-inch 12K monochrome LCD panel for this printer. It restores the Mighty 12K to its original exposure accuracy and print quality when the panel has degraded through extended use.
The Sonic Mighty 12K operates at a native XY resolution of approximately 34 µm across its 10.1-inch panel, which is what separates it from the 8K Mighty variant and defines its capability for fine miniature detail and high resolution engineering prints. Monochrome LCD technology delivers higher UV light transmission per pixel than RGB equivalents, which is why the Mighty 12K achieves both the cure speed and resolution it is known for. LCD degradation reduces that UV output gradually, which first manifests as slightly softened detail and slightly longer required exposure times before becoming visible as banding, uneven curing, and print failures.
Replacing the panel with the genuine Phrozen part restores the printer's original calibration. The genuine panel matches the connector type, physical dimensions, and optical characteristics the Mighty 12K was designed around. Phrozen's replacement procedure is covered in step-by-step guides and the panel arrives pre-aligned for direct installation.
- Screen size: 10.1 inches
- Resolution: 12K monochrome
- Native XY resolution: ~34 µm
- Compatible printer: Phrozen Sonic Mighty 12K
- Includes: LCD module, compatible cabling and connectors, installation guidance
3D Cast is Australia's official Phrozen distributor, stocking genuine Phrozen LCD replacement screens with fast shipping Australia wide and direct technical support.
Specifications
Specifications for the Phrozen Mighty 12K LCD replacement panel.
Specifications
Specifications for the Phrozen Mighty 12K LCD replacement panel.
3D Cast is the official Australian distributor for Phrozen Technology, stocking genuine Phrozen spare parts for the full Phrozen printer range from our Bairnsdale, Victoria warehouse. Warranty claims are managed locally with no international returns required.
Frequently Asked Questions
The panel arrives pre-aligned for direct installation. Follow Phrozen's step-by-step replacement guide, no separate exposure recalibration is typically needed with a genuine panel.
Signs start subtle, slightly softened detail and slightly longer required exposure times, before becoming visible as banding, uneven curing, and print failures.
This genuine panel restores the Mighty 12K to its original ~34 micron native XY resolution, the level of fine detail the printer was designed to achieve.
Yes, this is strongly recommended. A screen protector is a low-cost sacrificial layer that absorbs resin spills and scratches, protecting the LCD from damage that would otherwise shorten its working life.
Yes. 3D Cast is Phrozen's official Australian distributor, so you're getting a genuine OEM panel matching the original connector type, dimensions, and optical characteristics.
Yes, for 3 months against manufacturing defects, excluding damage caused by human factors such as incorrect installation or resin contact. 3D Cast manages all Phrozen warranty claims locally.
