Phrozen ARCO FDM 3D Printer Bundle

PRE ORDER DEAL Grab the Phrozen ARCO FDM 3D Printer + Chroma Multicolour Kit +Penta Shield bundle deal.
PRE-ORDER SAVINGS CLOSE 31/05/25.
Pre-order now to secure your printer. Limited supply from Phrozen. Pre orders will be getting preference of allocated stock. ETA is mid-August. Pay 50% now and balance payed out on 11/08/2025

$2,470.00 $2,515.00
Tax included Shipping calculated at checkout.

Phrozen ARCO FDM 3D Printer Bundle is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

This printer is shipped via a courier service to your area due to it's size.

Specifications

Extrusion System:18 mm extrusion wheels, near-end extrusion, all-metal hotend

Printing Speed:600 mm/s; 30,000 mm/s² acceleration
Maximum Hotend Flow Rate:32mm³/s (at 28°C with Phrozen High-Speed PLA filament)
Heated Bed Temperature: Max 120°C
Nozzle Temperature: Max 300°C
Printing Power: 1500W@220V;450W@110V
Input Voltage: 110/220 V; 50/60 Hz
Slicing Software: PIXUP FDM Slicer
System Type: Klipper
Display Screen: 5.0 inches
Connection: Wi-Fi, PIXUP FDM Slicer
Storage: USB
Automatic Detection: PID calibration, auto-levelling, vibration detection
Machine Size: 491x475x620 mm
Machine Weight:22 kg

Returns

Returns are available for products that have a manufacturing defect.

Warranty Information

Phrozen Tech offers a comprehensive warranty on its products, exclusively for Phrozen-branded hardware components, software, and firmware provided by Phrozen Tech. Consumable parts such as resin, LCD, and FEP/PFA/ACF film are not covered by the warranty.

For further information please click on the link.
https://phrozen3d.com/pages/warranty-policy

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Description

Grab the Phrozen ARCO FDM 3D Printer + Chroma Multicolour Kit +Penta Shield all together in this bundle deal.


Pre-order now to secure your printer. PRE-ORDER SAVINGS CLOSE 31/05/25. Limited supply from Phrozen. Pre orders will be getting preference of allocated stock. ETA is mid-August. Pay 50% now and balance payed out on 11/08/2025

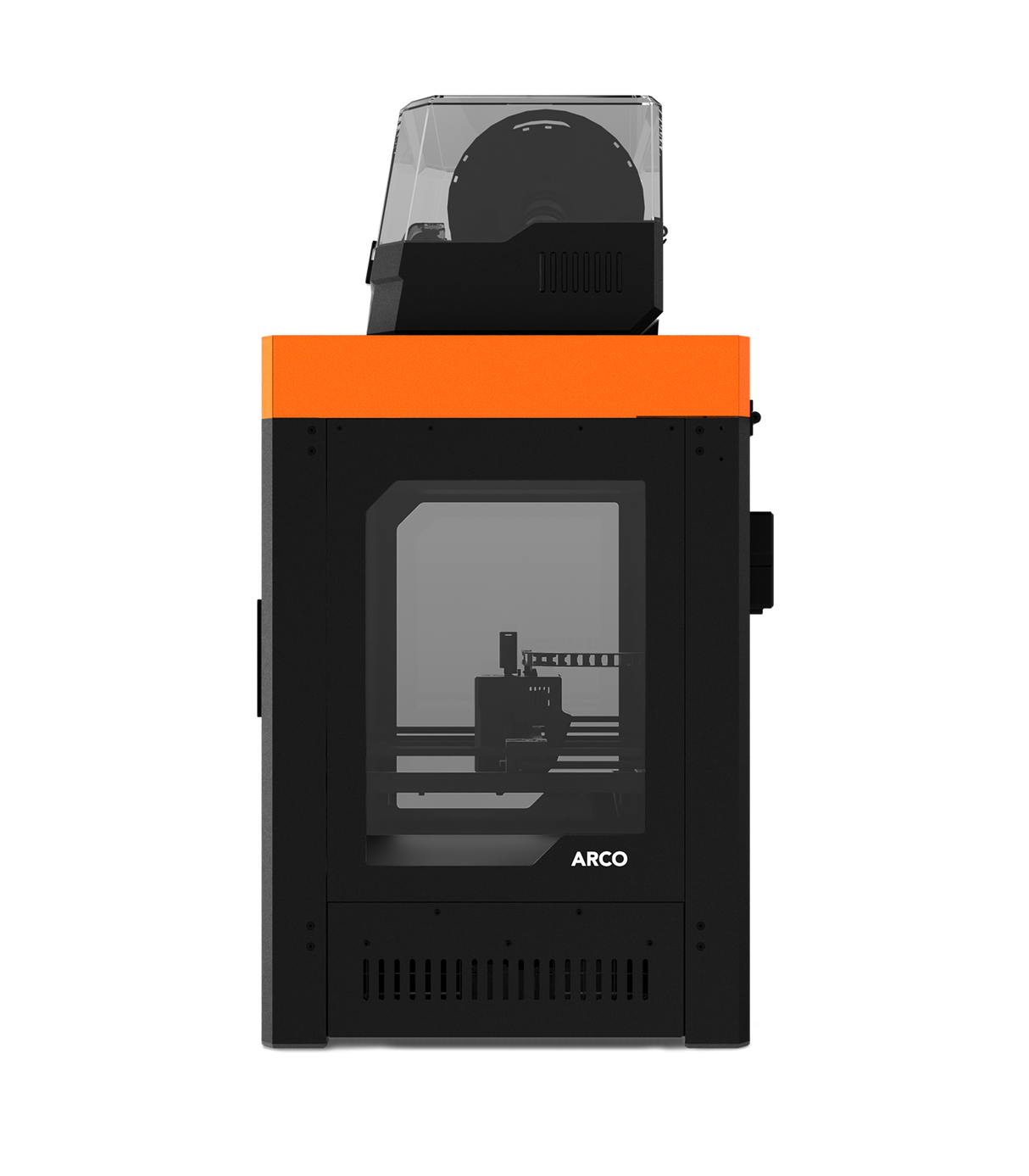

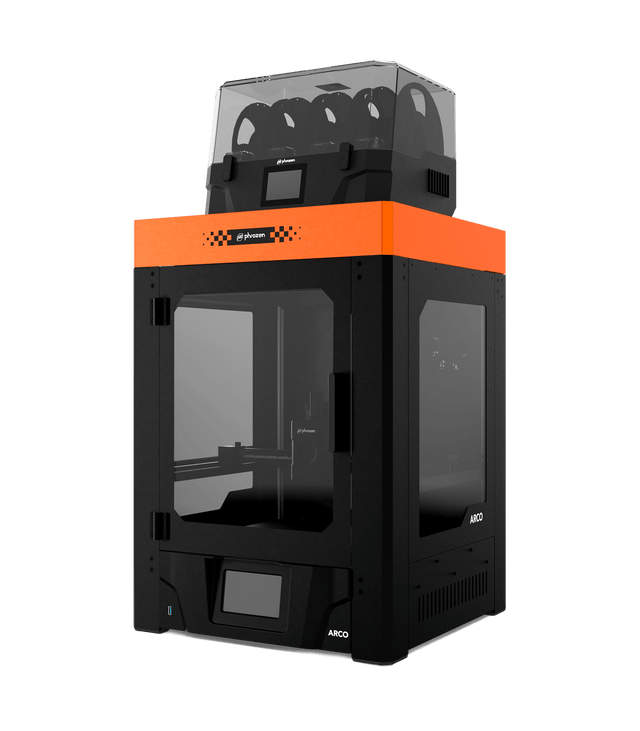

ARCO 3D Printer Information

Phrozen Arco revolutionizes FDM 3D printing with incredible printing speeds and unparalleled printing volume, setting a new standard for precision and efficiency. This breakthrough, powered by the open-source Klipper system, provides precise control and flexibility, allowing you to tailor your printing experience to perfection.

The Phrozen Arco is compatible with the Phrozen Chroma Kit multicolour system, Penta Shield enclosure panels, and Phrozen High-Speed PLA for maximum printing experience and results.

Benefits
  • Large-Size Printing Capabilities: With printing volume of 300x300x300 mm³, feel free to expand your creations and print life size masks, crowns, and more, all in one piece.
  • 12 Times Faster Than Conventional Printers: Empowered by dual 18 mm gears and a 9.5 torque ratio HGX extruder, Arco easily delivers an impressive speed of 600 mm/s with a substantial acceleration of 30,000 mm/s².

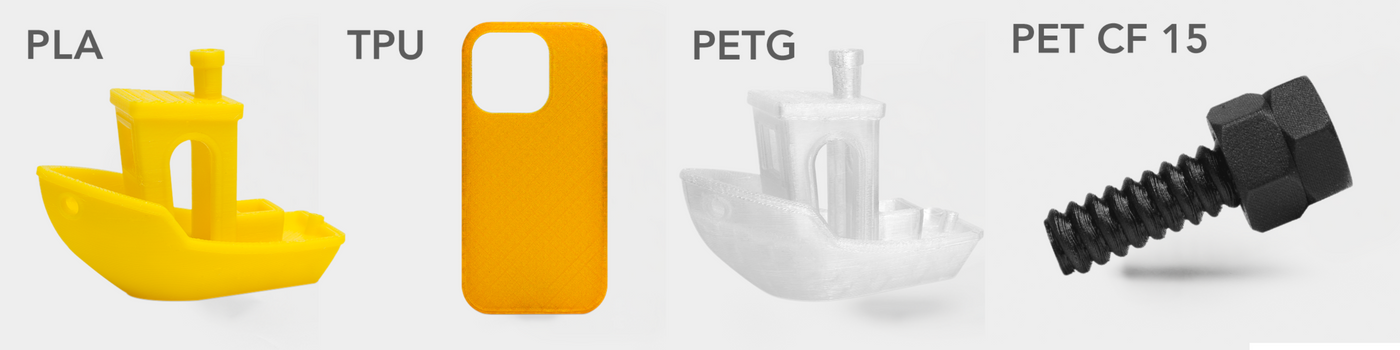

  • Consistent Performance Across Materials: The Arco is enhanced with our patented Direct Extrusion Path (DEP) system, efficiently reducing the distance between gears and heat source and maintaining steady extrusion even for soft materials like TPU.
  • Minimal Wobbling for Top Quality Prints: In a mission to deliver the utmost speed optimization, Arco is designed with a low-gravity base, core XY structure, and 4 reinforced support pillars to improve the build for higher stability.
  • Enjoy Open Source Freedom: Experience the power of customization with Phrozen Arco's open-source system. Developed with Klipper firmware, it empowers Arco users to make modifications and gain total control over your 3D printing experience.
  • Embark on a Multicolour Printing Journey: Get the Chroma Kit multicolour system as an extension for your Arco, and enjoy the ultimate colourful creations printing up to 4 colours in one model.
Specs
  • Printing Size: 300x300x300 mm
  • Extrusion System: Dual 18 mm extrusion wheels, advanced near-end extrusion, all-metal hotend
  • Printing Speed: 600 mm/s; 30,000 mm/s² acceleration
  • Maximum Hotend Flow Rate: 32mm³/s (at 28°C with Phrozen High-Speed PLA filament)
  • Heated Bed Temperature: Max 120°C
  • Nozzle Temperature: Max 300°C
  • Printing Power: 1500W@220V;450W@110V
  • Input Voltage: 110/220 V; 50/60 Hz
  • Slicing Software: PIXUP FDM Slicer
  • System Type: Klipper
  • Display Screen: 5.0 inches
  • Connection: Wi-Fi, PIXUP FDM Slicer
  • Storage: USB
  • Automatic Detection: PID calibration, auto-levelling, vibration detection
  • Machine Size: 491x475x620 mm
  • Machine Weight: 22 kg

Penta Shield Information

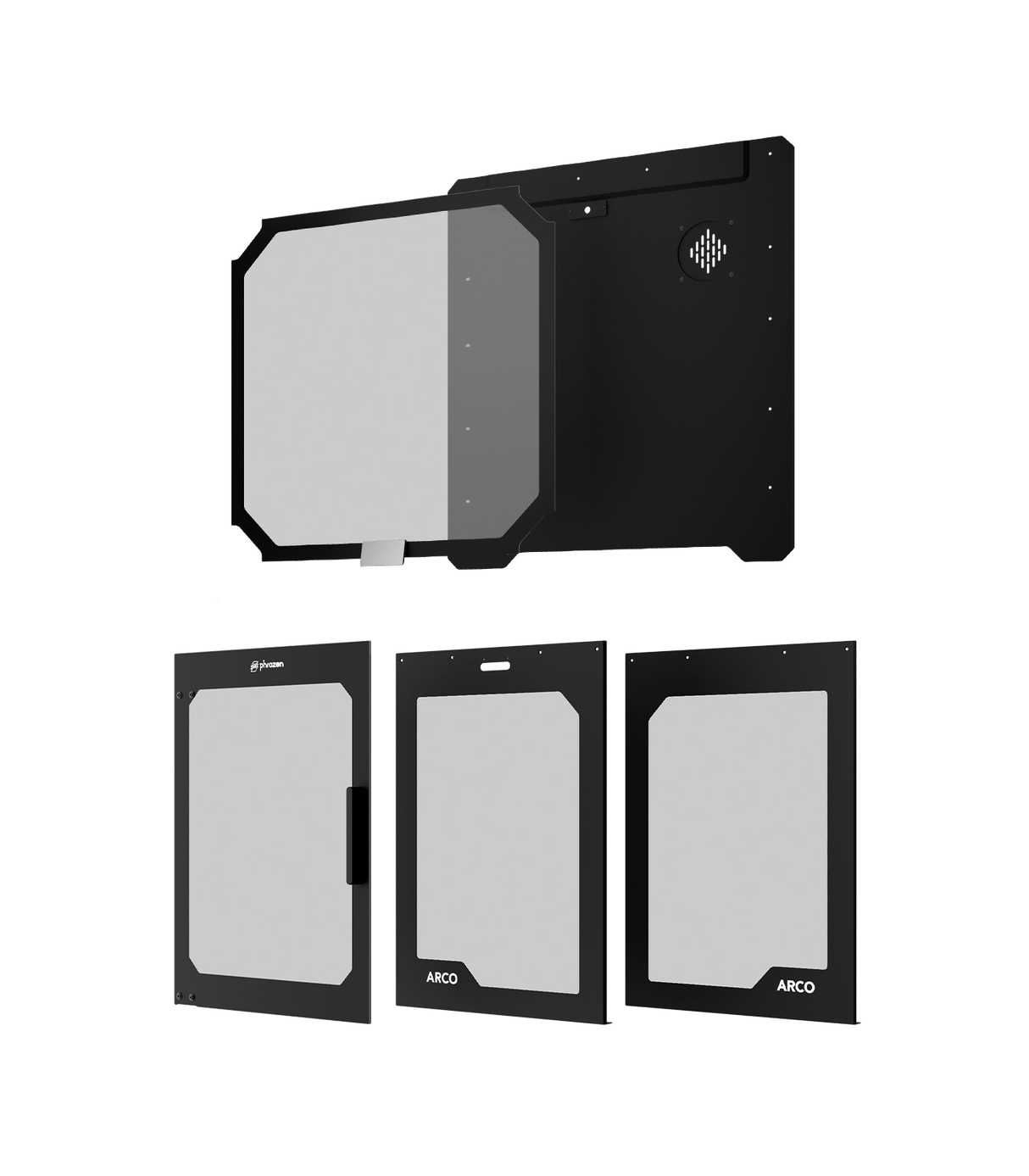

Comes with 5 full acrylic and metal frame panels, the PentaShield is easy to assemble and remove. With 3 see-through sides to check your printing progress, a solid metal panel on the back, and a see-through top to place your Chroma Kit, the PentaShield offers full protection during prints.

Benefits
  • All Metal, Strong and Robust: Made with all metal frames and acrylic panels, the PentaShield is super sturdy, further boosting the Arco's ultra-stable structure for best printing results.
  • Maintain a Consistent Printing Temperature: One benefit of the PentaShield enclosure is to keep your printing temperature consistent throughout the whole print, with PentaShield enclosed Arco showing up to 10°C higher than non-enclosed one.
  • Keep Your Workspace Comfortable: By installing the PentaShield enclosure, you can reduce printing smell and noise in your printing area or workspace rather significantly, providing a comfortable working or living area even during prints.
  • Reduce Unpleasant Printing Smell: The back panel of the PentaShield is designed with an opening to connect external recirculation system like HEPA (High Efficiency Particulate Air) or a ventilator fan to keep your printing area breathable and clean of unpleasant odour.

Chroma Kit Information

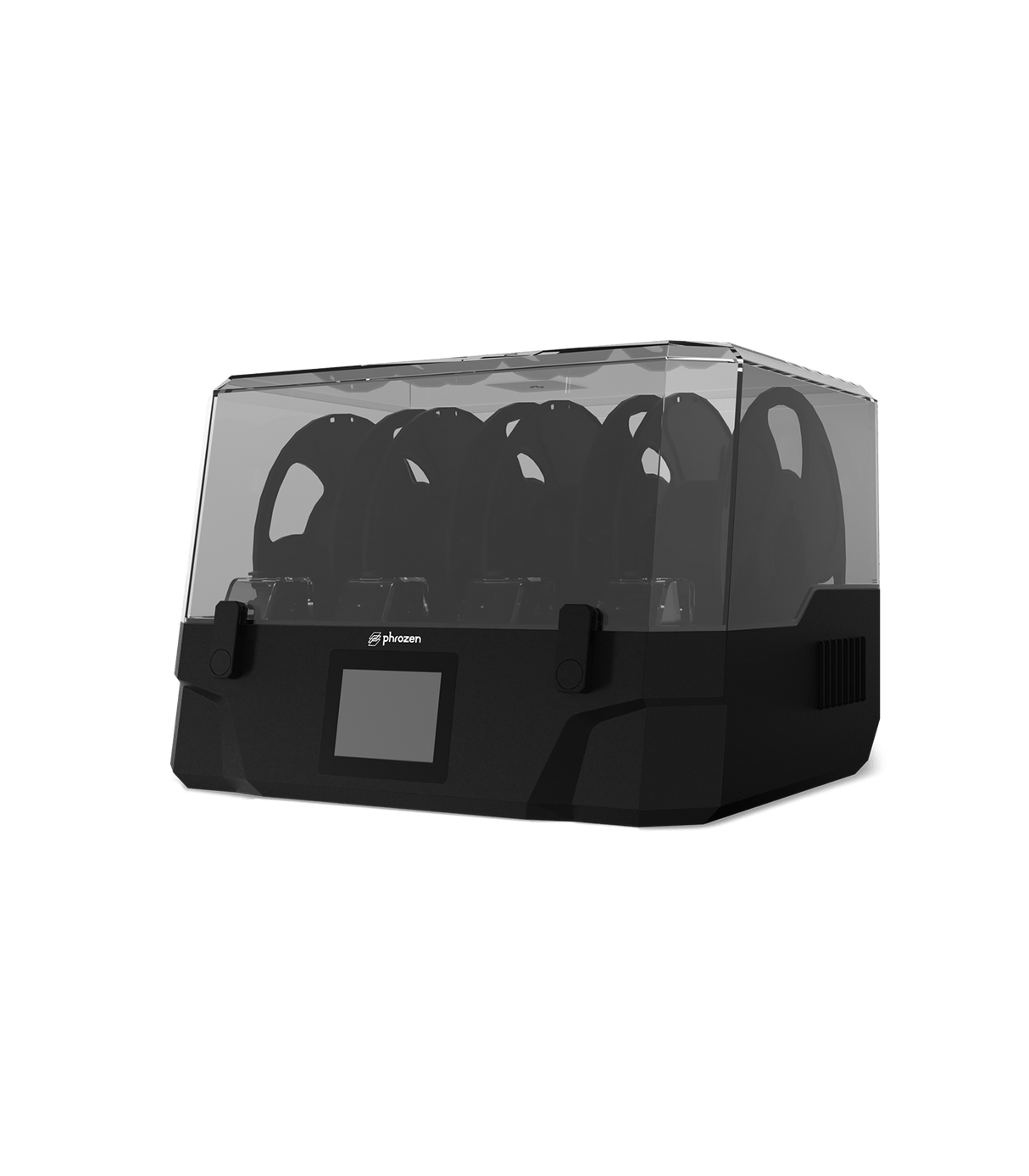

The Chroma Kit is an advanced 3D printing accessory developed with Klipper software. Not only will it give you the freedom to customize your creations with your preferred colour scheme, the Chroma Kit also acts as a filament enclosure to keep your 3D printing filaments dry for best printing performance and higher success rate.

While 3D printing transforms your ideas into reality, our Chroma Kit system adds vibrancy to your Phrozen Arco creations by printing up to 4 colours in one go.

Thanks to its highly efficient power drive and all-around sealed enclosure, say goodbye to filament jams and breaks, creating the best environment for all your filaments.

Benefits
  • Print 4 Colours in One Go: While a monochrome print can be exciting as it is, imagine the opportunity that a multicolour print will open. Skip the painting and enjoy multicolour prints straight from the bed.
  • Keep Your Filaments Dry: Avoid bubbles and uneven extrusion lines on your prints by keeping your filaments dry. With pre-installed desiccant included in the Chroma Kit, it'll keep the filaments on its optimum condition.
  • Goodbye to Jams and Breaks: Thanks to the new power drive and motor design, the Chroma Kit is designed to work smoothly without the interruption of filament jams and breaks.
  • Print With Multi-Material: We're working on the Chroma Kit's capability for multi-material printing, giving users the option to use support materials or combine different materials in a model.
