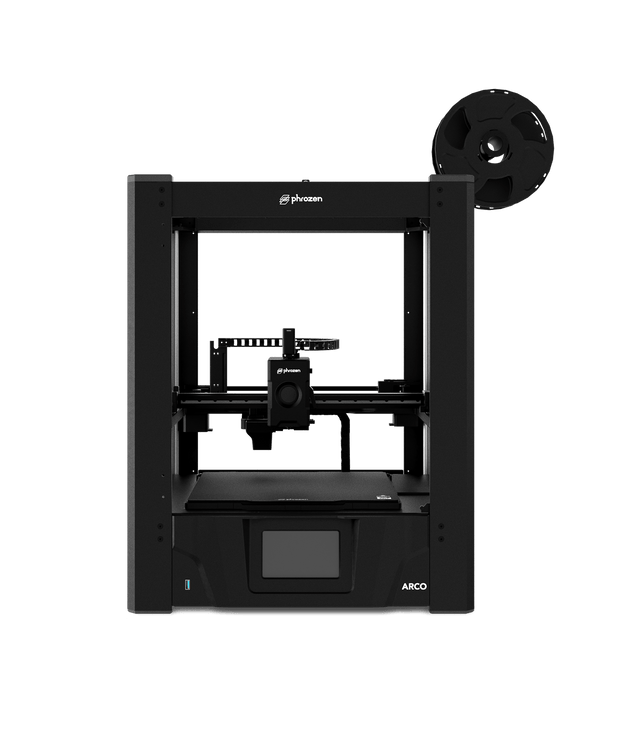

Phrozen ARCO FDM 3D Printer + 1KG High Speed PLA GRAY Bundle

The Phrozen ARCO is an FDM 3D printer designed for producing strong, functional plastic parts in large formats at high speed. Common applications include functional prototypes, jigs and fixtures, enclosures and housings, engineering brackets, tooling aids, architectural models, and small batch component production. It is used by small businesses, engineering teams, educators, and production environments that need reliable FDM output daily.

This product includes the Phrozen ARCO FDM 3D printer as a standalone machine. The PentaShield Enclosure and Chroma Kit are sold separately and can be added at any time as modular upgrades.

The ARCO is best suited for small businesses, engineers, product designers, educators, and production users who need a large-format FDM printer capable of running engineering-grade filaments with precision and reliability. Users who will get the most from it are those printing functional parts regularly and who want the control that Klipper firmware provides.

The ARCO supports PLA, Tough PLA, PETG, TPU, ABS, ASA, PC, and carbon-fibre and glass-fibre composite filaments. The all-metal hotend reaches 300°C and the heated PEI bed reaches 120°C, which provides the temperature range required for engineering-grade materials. For ABS, ASA, and PC, the PentaShield Enclosure is recommended to stabilise the print environment and prevent warping.

No enclosure is required for PLA, Tough PLA, or PETG. An enclosure becomes important when printing ABS, ASA, PC, or other materials sensitive to ambient temperature fluctuations. Drafts and temperature changes during a long print cause these materials to warp and delaminate. The optional PentaShield Enclosure raises the internal temperature by up to 10°C and eliminates this problem.

The PentaShield is an optional enclosure for the ARCO consisting of five removable tempered glass panels. It raises the internal chamber temperature by up to 10°C, reduces operational noise by approximately 15%, and includes a carbon-filter fan that activates automatically at 35°C to manage fumes. It can be purchased and installed at any time after buying the ARCO.

The Chroma Kit is an optional multi-filament system that connects to the ARCO and enables automated printing across 4 filament channels, expandable to 16. Each channel has a built-in drying chamber up to 70°C and its own jam and runout sensors. The Chroma Kit switches between filaments automatically during a print based on slicer instructions, removing the need for manual swapping. It can be added at any time.

FDM printers like the ARCO produce parts that are stronger, more durable, and better suited to functional and mechanical applications. The ARCO can print at a much larger scale than most resin printers, up to 300 x 300 x 300 mm, and supports a wider range of materials including flexible and engineering-grade filaments. Resin printers produce finer surface detail and higher dimensional accuracy at small scales. Many users run both technologies for different applications.

Yes. The 300 x 300 x 300 mm build volume allows large individual parts or multiple smaller parts in a single job. Klipper firmware with input shaping and pressure advance helps maintain quality across repeated runs. Features like power loss resume and filament runout detection reduce failed jobs during long unattended prints.

The ARCO is compatible with PIXUP Slicer, which is Phrozen’s own FDM slicing software. It is also compatible with OrcaSlicer and other Klipper-compatible slicers. Phrozen provides printer profiles to help you get reliable results quickly without starting from scratch.

Yes. All in-stock ARCO printers are shipped from 3D Cast's Australian warehouse.

In-stock orders are dispatched from 3D Cast's Australian warehouse. Tracking information is provided once the order has been collected by the carrier.

Contact 3D Cast before ordering. Tell us what you plan to print, which filaments you want to use, and the scale of your parts, and the 3D Cast team can help confirm whether the ARCO is the right fit.

Yes. 3D Cast supports everything stocked and sold. The 3D Cast team can assist with setup, Klipper configuration, PIXUP Slicer profiles, filament selection, and troubleshooting throughout the life of the printer.

The ARCO is covered by the Phrozen manufacturer warranty for hardware components. Consumable parts including nozzles and the build plate surface are not covered under warranty. If you experience an issue, contact 3D Cast and the team will help through the process.

Returns and cancellations are handled in line with our store policy. Please review our returns information or contact 3D Cast before ordering if you have concerns.

3D Cast is the official Australian distributor for Phrozen products, stocking locally and shipping from an Australian warehouse with hands-on experience across the full Phrozen range. 3D Cast provides technical support across setup, slicing, and material selection, and is available directly if something goes wrong.

Yes. As an Australian retailer, all purchases from 3D Cast are covered by Australian Consumer Law guarantees in addition to the manufacturer warranty. This gives you rights to repair, replacement, or refund for genuine product faults.
