Monocure3d Fep Film 100 Microns (5 Sheet Pack)

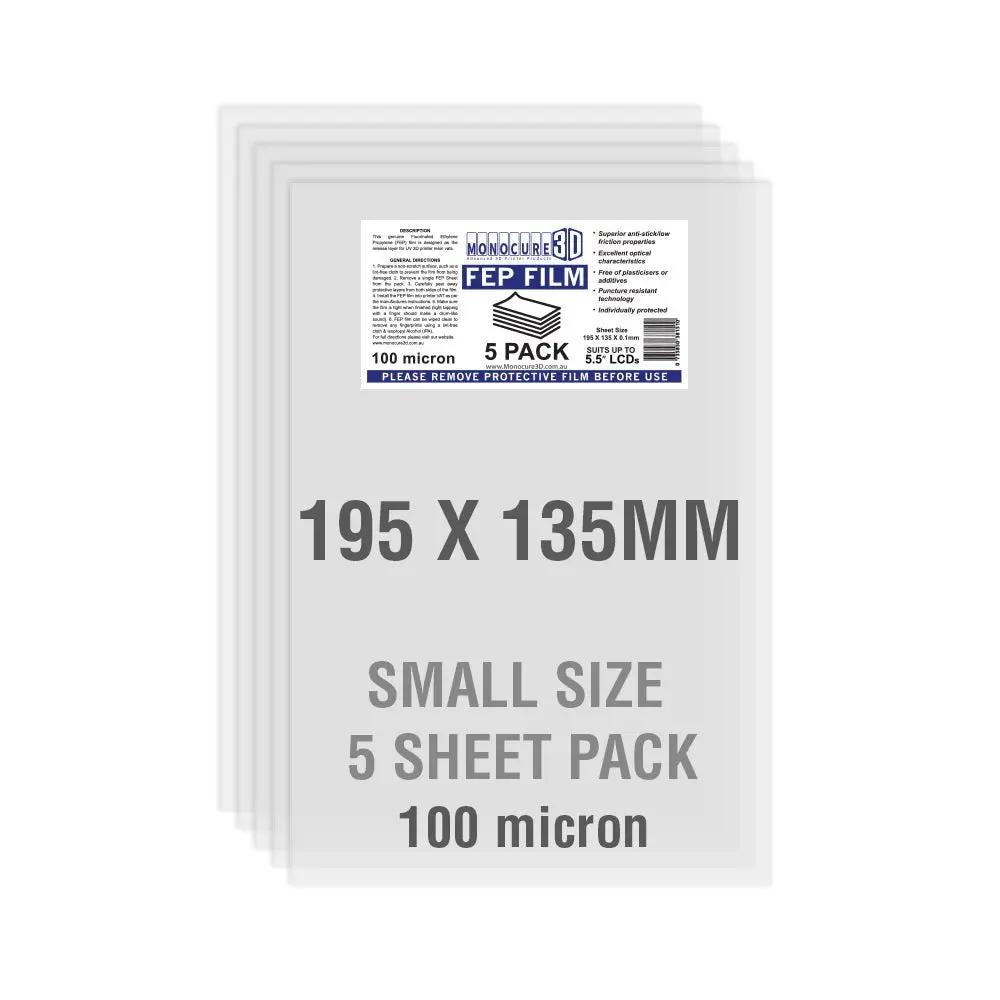

Monocure3D FEP Film 100 Micron 5-Sheet Pack: Flexible Vat Film for Compact Resin Printers
Monocure3D FEP Film 100 Micron is a 5-sheet pack of replacement vat film measuring 195 x 135 mm and 100 µm thick, manufactured from genuine fluorinated ethylene propylene (FEP). It suits any resin printer with a compact vat that accepts a 195 x 135 mm sheet, including printers with 5.5-inch screens. Check your printer's vat dimensions before ordering to confirm fit.
At 100 µm, this is the thinnest and most flexible FEP option in the Monocure compact range, providing lower peel force and higher UV transmittance than the 200 µm option at the cost of reduced mechanical durability. Thinner FEP film flexes more readily during layer separation, reducing the suction force between the cured layer and the vat floor, which makes it the better choice for users printing models with large flat cross sections where peel force is more likely to cause layer delamination.
The durability trade-off means 100 µm film requires replacement more frequently than 200 µm film under equivalent use. The 5-sheet pack anticipates this higher replacement rate and provides enough stock to cover several replacement cycles without reordering.
- Material: FEP (Fluorinated Ethylene Propylene)
- Size: 195 x 135 mm
- Thickness: 100 µm
- Quantity: 5 sheets
- Suits: Any resin printer with a vat accepting 195 x 135 mm film (including 5.5-inch format printers)
3D Cast is Australia's official Monocure3D distributor, stocking genuine Monocure3D FEP Film with fast shipping Australia wide.
Specifications
Specifications for the Monocure3D FEP Film 100 Micron.
Specifications
Specifications for the Monocure3D FEP Film 100 Micron.
3D Cast is the official Australian distributor for Monocure3D, stocking the full Monocure3D vat film range from our Bairnsdale, Victoria warehouse.
Frequently Asked Questions
Check your printer's vat dimensions before ordering. This film suits any resin printer with a vat accepting 195 x 135mm film, including printers with 5.5-inch screens.
100 micron provides lower peel force and higher UV transmittance, better suited to models with large flat cross sections. 200 micron is more durable and withstands more print cycles before replacement.
More frequently than 200 micron film under equivalent use, due to the reduced mechanical durability of the thinner material.
Correctly tensioned film produces a drum-like resonance when tapped lightly at the centre.
Yes. 3D Cast is Monocure3D's official Australian distributor, stocking the full film range.
Yes. Monocure3D is an Australian-developed 3D printing materials brand, stocked locally by 3D Cast.
