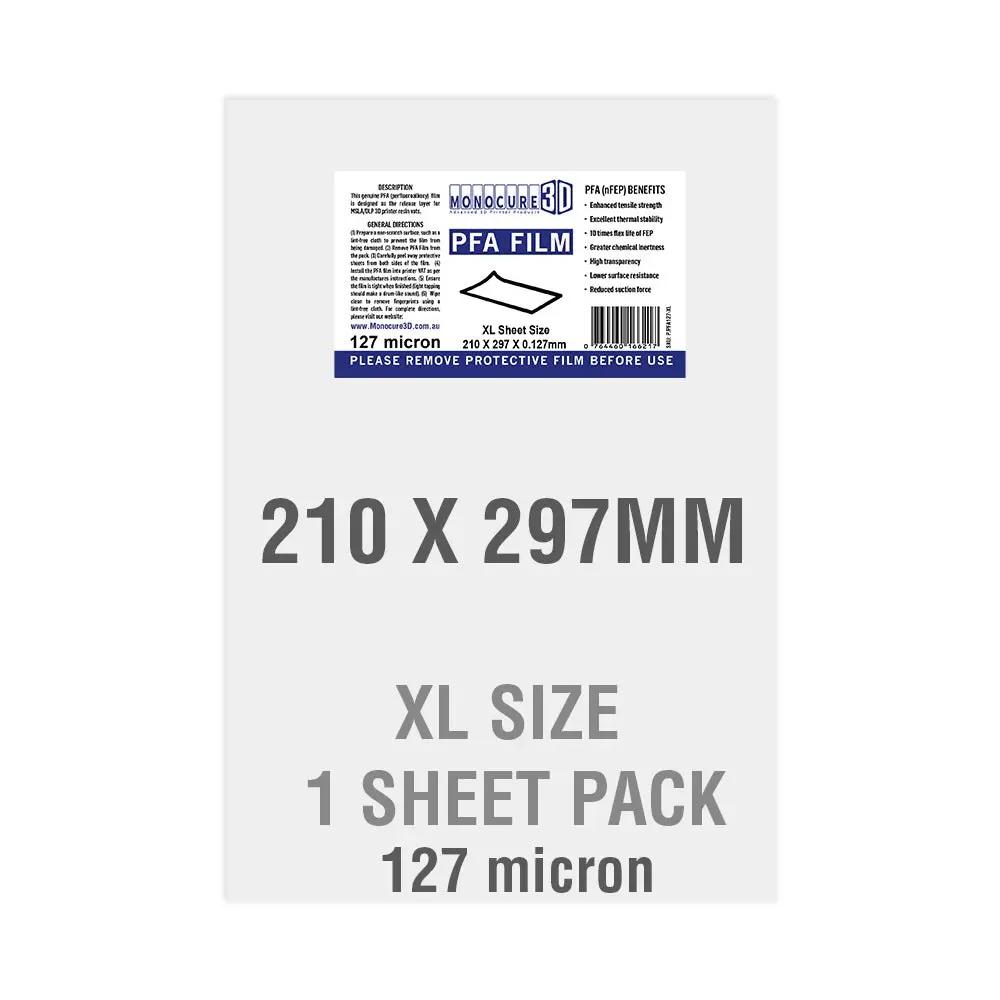

Monocure3d XL nFEP Film
Monocure3D XL nFEP Film: Premium Vat Film for Large Format Resin Printers
Monocure3D XL nFEP Film is a single-sheet premium replacement vat film measuring 210 x 297 mm and 127 µm thick, manufactured from genuine PFA (nFEP) polymer. It is suited to any resin printer with a large format vat that accepts a 210 x 297 mm sheet, including printers with 8.9-inch screens. Check your printer's vat dimensions before ordering to confirm fit.
nFEP (PFA) delivers lower suction force during layer separation than standard FEP film, which reduces print failures on the large cross section prints that larger format printers are typically used for. The smoother surface of nFEP reduces the mechanical bond between the cured resin layer and the film during lift, lowering peel force at each layer cycle. At 127 µm, this is thinner than standard 150 µm or 200 µm FEP options, which provides greater film flexibility, further reducing peel force and improving UV transmittance compared to thicker films.
Correct installation tension is confirmed by a drum-like resonance when the installed film is tapped at the centre, indicating the film is seated flat without low-tension areas that cause uneven cure contact.
- Material: nFEP (PFA — Perfluoroalkoxy)
- Size: 210 x 297 mm
- Thickness: 127 µm
- Quantity: 1 sheet
- Suits: Any resin printer with a vat accepting 210 x 297 mm film (including 8.9-inch format printers)
3D Cast is Australia's official Monocure3D distributor, stocking genuine Monocure3D XL nFEP Film with fast shipping Australia wide.
Specifications
Specifications for the Monocure3D XL nFEP Film.
Specifications
Specifications for the Monocure3D XL nFEP Film.
3D Cast is the official Australian distributor for Monocure3D, stocking the full Monocure3D vat film range from our Bairnsdale, Victoria warehouse.
Frequently Asked Questions
nFEP offers lower peel force during layer separation and a longer service life than standard FEP, reducing print failures on larger or more complex geometries at the cost of a higher price per sheet.
No. This is a direct upgrade path for existing XL format vats accepting 210 x 297mm film, with no hardware changes required.
Check your printer's vat dimensions before ordering. This film suits any resin printer with a vat accepting 210 x 297mm film, including printers with 8.9-inch screens.
Correctly tensioned film produces a drum-like resonance when tapped lightly at the centre.
Yes. 3D Cast is Monocure3D's official Australian distributor, stocking the full film range.
Yes. Monocure3D is an Australian-developed 3D printing materials brand, stocked locally by 3D Cast.
