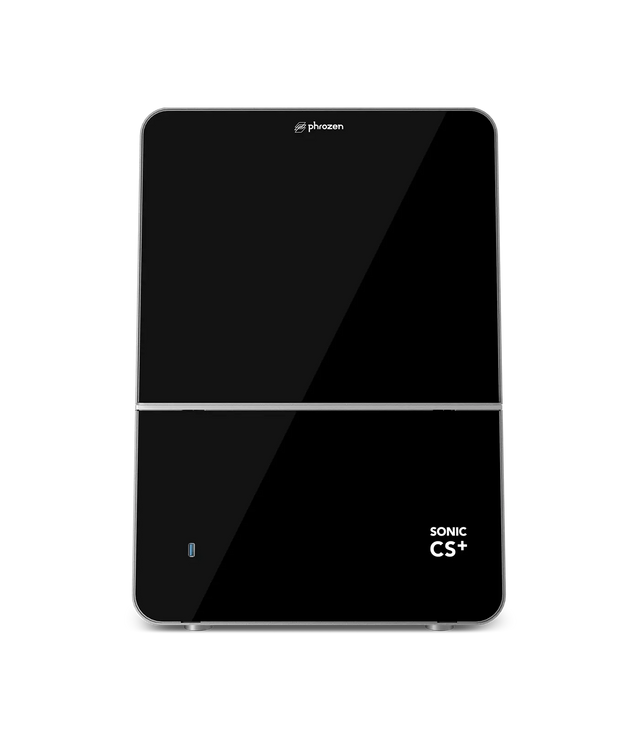

Phrozen Dental CS+ Resin 3D Printer

The Phrozen Sonic CS+ is a chairside dental 3D printer designed for dental clinics that want to deliver same-day treatment to patients. It prints crowns, surgical guides, occlusal splints, aligner models, and study models directly in the clinic, eliminating the need to send work to an external lab and allowing you to treat patients in a single visit.

The Sonic CS+ prints at up to 100 mm per hour and can produce dental appliances in under 45 minutes, making same-day patient treatment practical for most common chairside indications. Setup from box to first print takes approximately 10 minutes with the included guided tutorial.

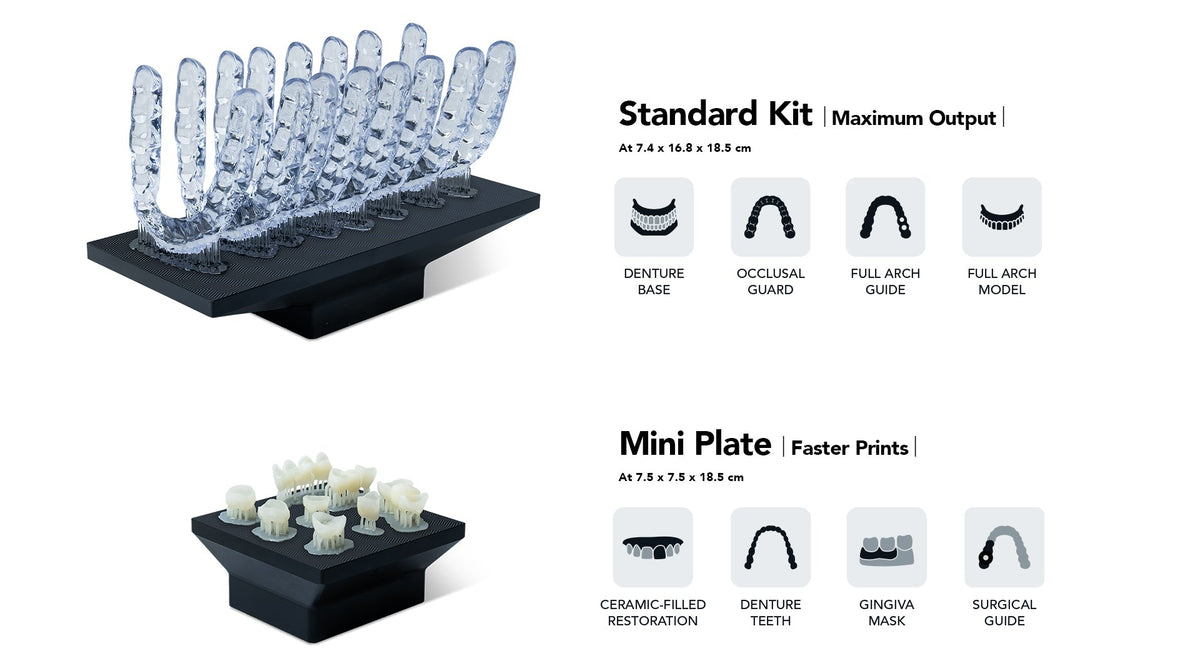

The Sonic CS+ includes both build plate configurations. The Mini Kit (75 x 75 x 175 mm) is designed for fast single-unit prints with reduced resin usage and faster cleaning time. The Standard Kit (168 x 74 x 175 mm) provides a larger build area for full-arch models or multiple units in a single print. You can switch between kits depending on the clinical task.

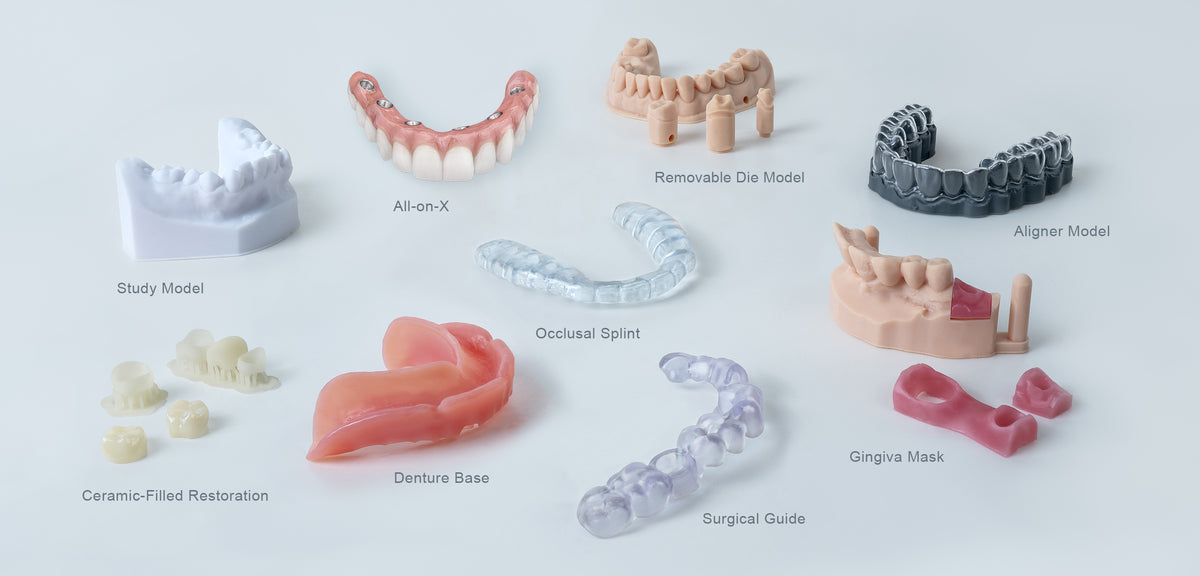

The Sonic CS+ is validated for a wide range of chairside indications including restorative crown and bridge models, aligner models, study models, gingiva masks, occlusal splints, surgical guides, All-on-X provisional restorations, and denture bases. Phrozen provides step-by-step guides for each indication through the DS Slicer workflow.

Yes. The Sonic CS+ uses an open-system approach, meaning it accepts validated third-party dental resins in addition to Phrozen's own dental materials. Resin profiles for compatible materials are available through the Phrozen DS Slicer and the Phrozen resin profile library. For the most consistent clinical results, Phrozen-validated resin settings are recommended.

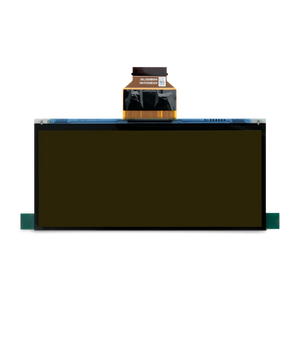

The Sonic CS+ achieves validated accuracy with more than 95% of data points falling within 50 microns of the original CAD data. The 385 nm LCD with 22 µm resolution delivers precise cross-arch fits suitable for crowns, surgical guides, and other accuracy-critical dental applications.

Yes. The Sonic CS+ is specifically designed as an entry point into chairside digital dentistry. A comprehensive step-by-step tutorial guides you through setup and first print in approximately 10 minutes. Validated resin settings eliminate trial and error, and the Phrozen DS Slicer handles slicing and print preparation with dental-specific presets built in.

After printing, parts require washing in IPA or a dedicated washing solution followed by UV curing. Phrozen recommends using the Wash+ automatic washing station and the Cure+ UV curing unit for a complete and validated post-processing workflow. Both are available from 3D Cast and are designed to work seamlessly with the CS+ and Phrozen dental resins.

Yes. The Sonic CS+ includes a built-in chamber and VAT heating system. Heating the resin vat before printing is recommended to ensure consistent viscosity and print quality, particularly with dental resins that require temperature stability for accurate results. The Phrozen Heat and Mix resin mixing station is available at 3D Cast and is recommended for resin preparation before each print session. Phrozen also recommends using the Heat and Mix resin mixing station to prepare your resin before loading.

Yes. The Phrozen Sonic CS+ is available in Australia through 3D Cast, the official Australian distributor for Phrozen Technology. All stock is held locally for fast shipping. 3D Cast's team provides expert support for setup, resin selection, workflow configuration, and ongoing technical assistance. You are not dealing with an offshore reseller, you are dealing with the Australian distributor directly.
