Phrozen Mega Cure S

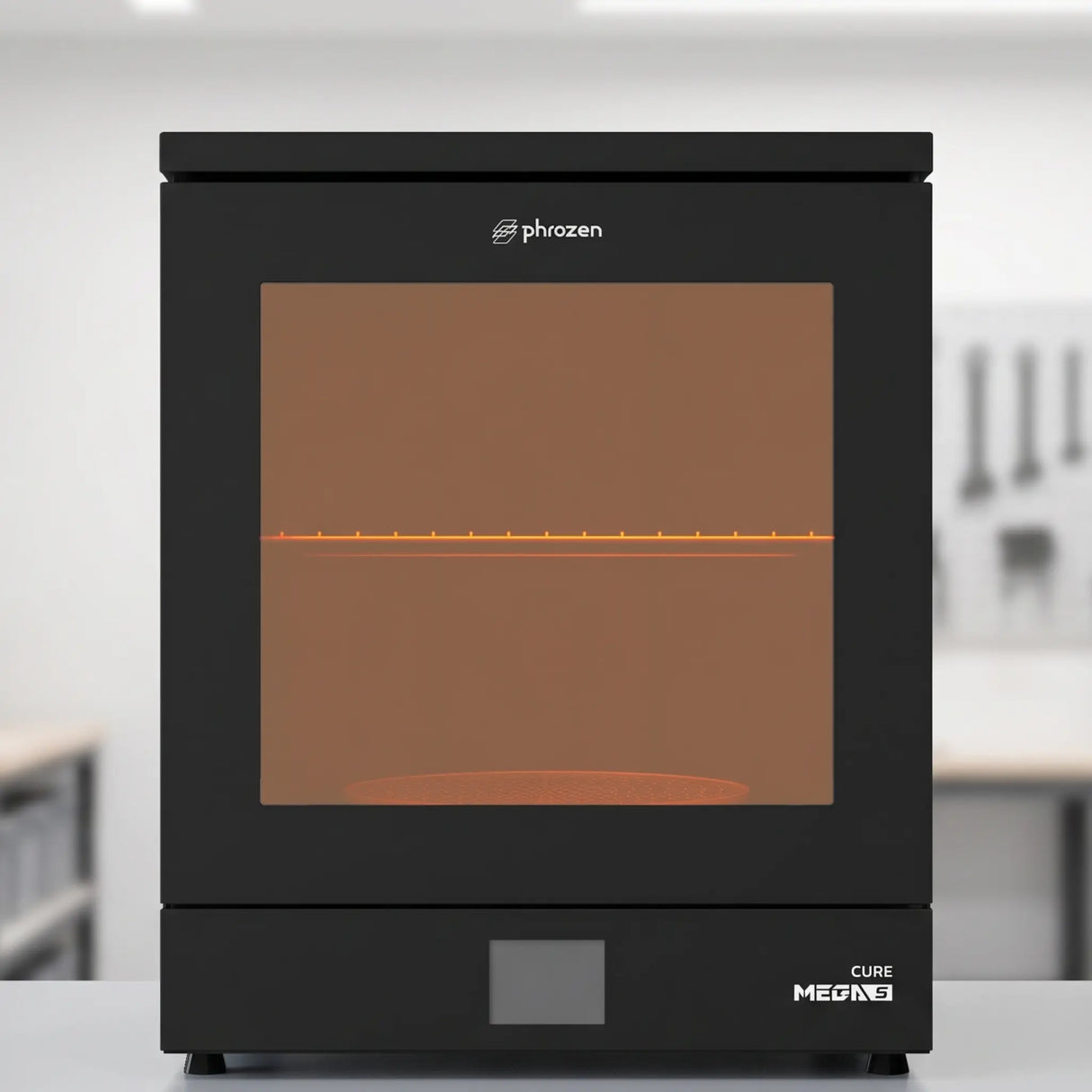

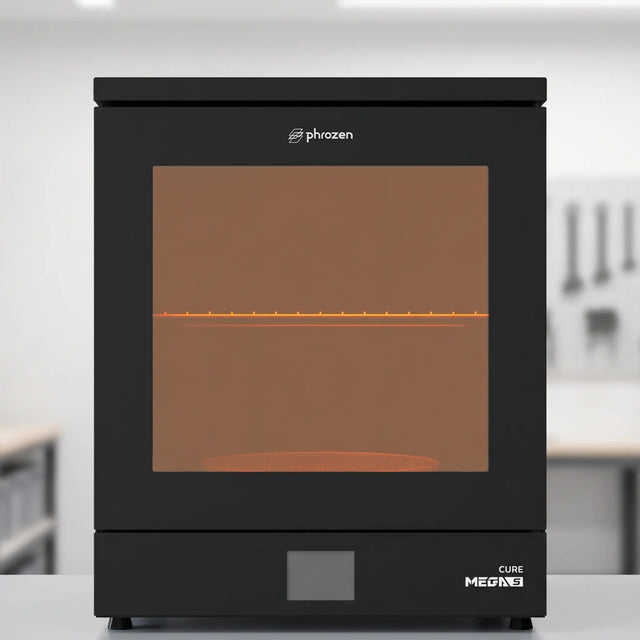

Phrozen Mega Cure S: Large Format UV Curing Station for Resin 3D Prints
The Phrozen Mega Cure S is a large format UV curing station designed for high-volume resin 3D printing workflows, professional production environments, and users whose print size or batch volume exceeds the capacity of standard compact curing stations. It is the curing station counterpart to the Wash Mega S wash station in the Phrozen large format post-processing range.
The curing chamber uses 405 nm UV LEDs and a 360° transparent rotating turntable to deliver even UV exposure across all surfaces of the model simultaneously. Uniform curing is critical for mechanical properties — resin that is unevenly exposed produces parts with inconsistent hardness and potential weak zones at under-cured surfaces, which affects both the structural performance of functional parts and the surface quality of display models. The transparent turntable allows visual monitoring of the curing process without interrupting the cycle.
Dual high-speed fans operating at 1,700 RPM support rapid drying, which removes residual cleaning solvent from the model surface before UV exposure begins. Solvent residue on the model surface during UV curing inhibits full surface cure and leaves a tacky layer; the fan-assisted drying mode addresses this. Three operating modes are available: dry only, cure only, and dry then cure sequentially, allowing the station to serve as a drying stage, a curing stage, or both in the same cycle. A detachable internal rack accommodates both large single models and batches of smaller parts across the same curing cycle.
3D Cast is Australia's official Phrozen distributor, stocking the genuine Phrozen Mega Cure S with fast shipping Australia wide and direct support for dental, production, and professional resin workflows.
360° UV CURING
The transparent rotating turntable delivers even 405 nm UV exposure across all model surfaces simultaneously. No shadow zones, no directional bias, no under-cured regions. The chamber accommodates models up to Ø35 x 30 cm, covering the full build volume of the Mega 8K series and Sonic Mighty range.
Large format model curing at Ø35 x 30 cm
DETACHABLE RACK
The internal rack supports two levels of parts across the same curing cycle. Vertical placement maximises the Ø35 x 30 cm chamber capacity, making batch curing of smaller parts practical without running multiple cycles. The rack is fully detachable for large single model curing.
Detachable rack for batch curing multiple parts in one cycle
DUAL FAN DRYING
Dual 1,700 RPM fans remove residual cleaning solvent from the model surface before UV exposure begins. Solvent residue during UV curing inhibits full surface cure and leaves a tacky layer. The fan-assisted drying stage eliminates this before the UV cycle starts. Three operating modes: dry only, cure only, or sequential dry then cure.
Dual 1,700 RPM fans and three-mode control panel
TRANSPARENT TURNTABLE
The transparent rotating turntable allows visual confirmation of the curing cycle without opening the chamber. In production workflows, being able to verify parts are rotating correctly and positioned as expected without interrupting the cycle reduces waste from aborted cures.
Transparent turntable for visual monitoring without interrupting the cure cycle
MEGA CURE S AT A GLANCE
-
01Ø35 x 30 cm
Maximum curing size, large format capacity
-
02360° rotation
Transparent turntable, even UV coverage
-
031,700 RPM fans
Dual fan drying before UV exposure
-
043 modes
Dry, cure, or dry then cure
Phrozen Mega Cure S Specifications
Full specifications confirmed by Phrozen Technology. Stocked by 3D Cast, Australia's official Phrozen distributor.
Phrozen Mega Cure S Specifications
Full specifications confirmed by Phrozen Technology. Stocked by 3D Cast, Australia's official Phrozen distributor.
3D Cast is Australia's official Phrozen distributor. The Mega Cure S is stocked in Bairnsdale, Victoria and ships from Australian stock. Our team runs large format Phrozen printers and can assist with curing workflow questions, cure time parameters, and compatibility with different resin types. No grey imports, no overseas support lines.
Phrozen Mega Cure S: Frequently Asked Questions
The Mega Cure S is suited for large format Phrozen printers including the Sonic Mega 8K S, Sonic Mega 8K V2, and the Sonic Mighty Revo 16K MAX. Its maximum curing size of Ø35 x 30 cm accommodates the build volumes of these printers. For standard desktop printer users, the Phrozen Wash and Cure Kit is the more appropriate option.
Resin cured under a single-direction UV source produces parts with inconsistent mechanical properties. Fully cured surfaces face the light while partially cured surfaces face away, leaving under-cured regions that remain tacky or structurally weaker. The 360° rotating turntable ensures all surfaces receive equal UV exposure across the full cure cycle.
Residual cleaning solvent on the model surface during UV exposure can inhibit full surface cure and leave a tacky layer. The dual 1,700 RPM fans remove solvent before UV starts in the dry then cure sequential mode. This is the recommended workflow for prints going directly from the Wash Mega S to the Mega Cure S.
The timer range is 1 to 120 minutes with a recommended maximum of 30 minutes per cycle. Optimal cure time depends on the resin type, model geometry, and wall thickness. Over-curing causes brittleness in many resin formulations. Our team can advise on cure parameters for specific resins.
Yes. The detachable internal rack accommodates both large single models and batches of smaller parts across the same curing cycle. The rack allows vertical placement of parts to maximise the Ø35 x 30 cm chamber capacity, making it practical for production runs of multiple parts in a single cure cycle.
The Mega Cure S uses 405 nm UV LEDs, which is the standard curing wavelength for the majority of photopolymer resins including Phrozen, Monocure3D, and Resione resins, as well as most engineering, castable, and dental resins. If you are using a specialist resin with a different curing wavelength, check the manufacturer specifications before use.
The Wash and Cure Kit is a compact combined unit suited for standard desktop resin printer build volumes up to Ø25 x 23.5 cm. The Mega Cure S is a standalone large format curing station with a Ø35 x 30 cm chamber and dual 1,700 RPM fans, designed for Mega series printer output. They serve different printer size categories and are not interchangeable.
Yes. The Phrozen Mega Cure S is stocked in Australia by 3D Cast, the official Australian Phrozen distributor. Ships from our Bairnsdale, Victoria warehouse via courier due to its size and weight of 15 kg.
