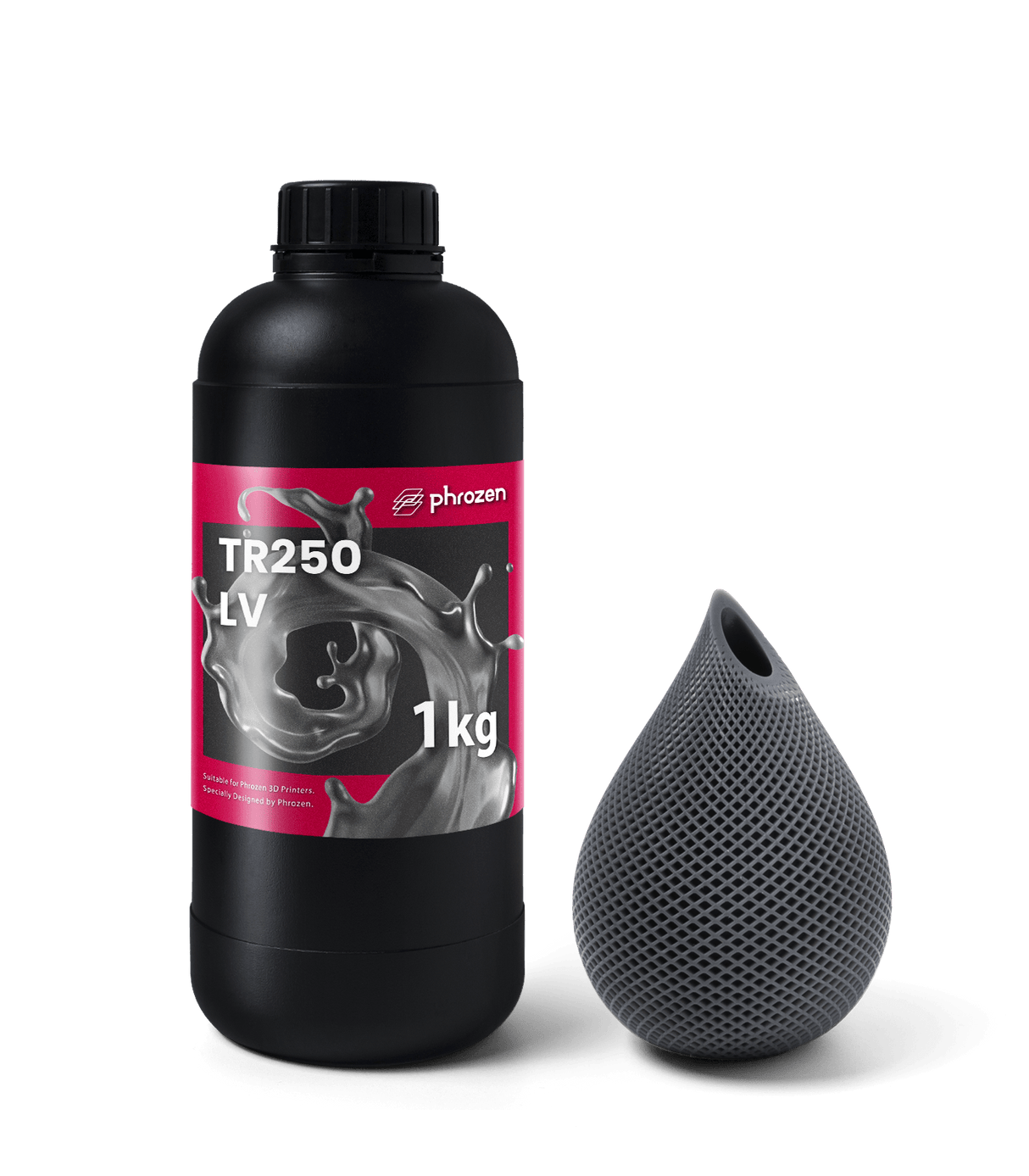

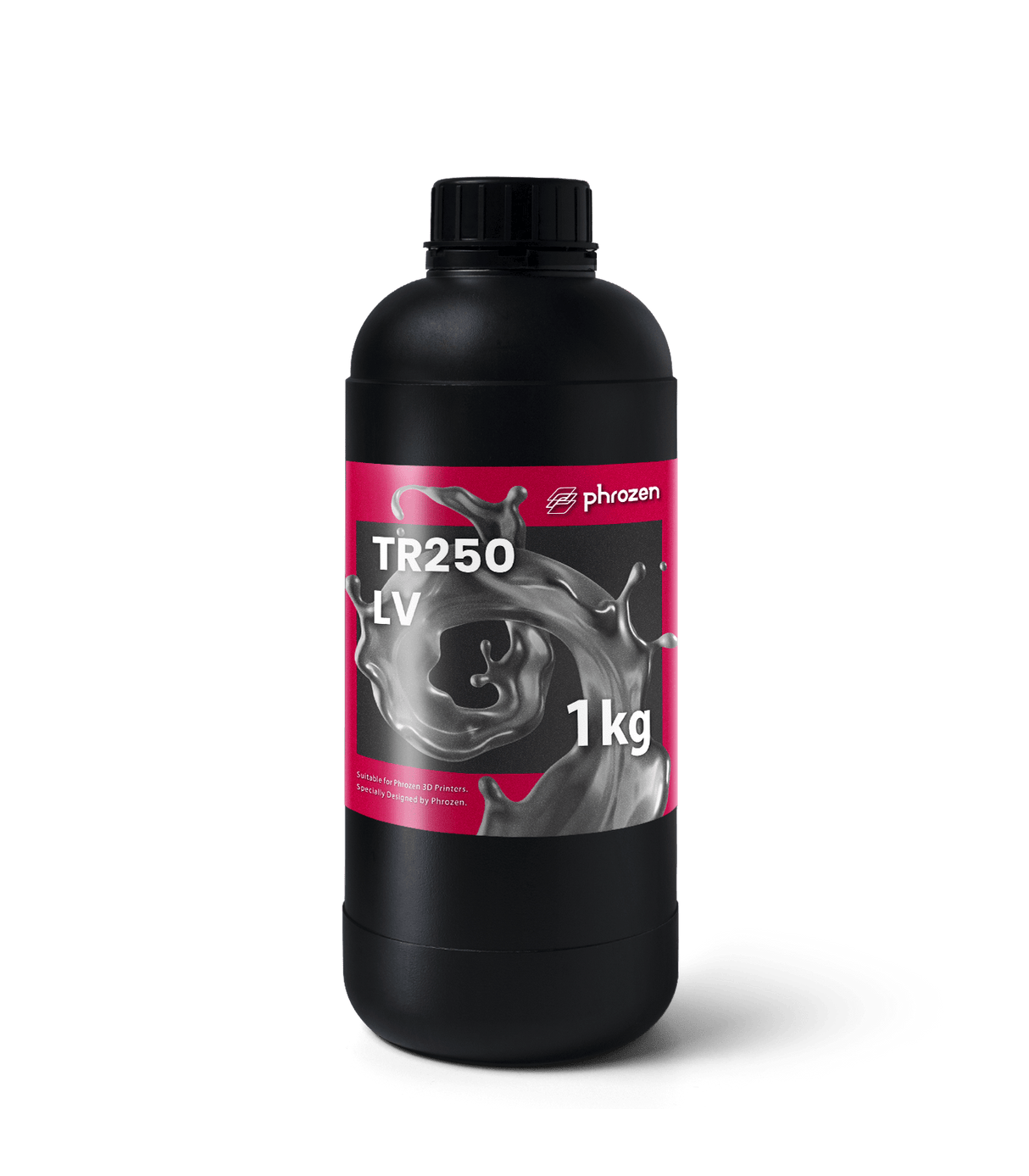

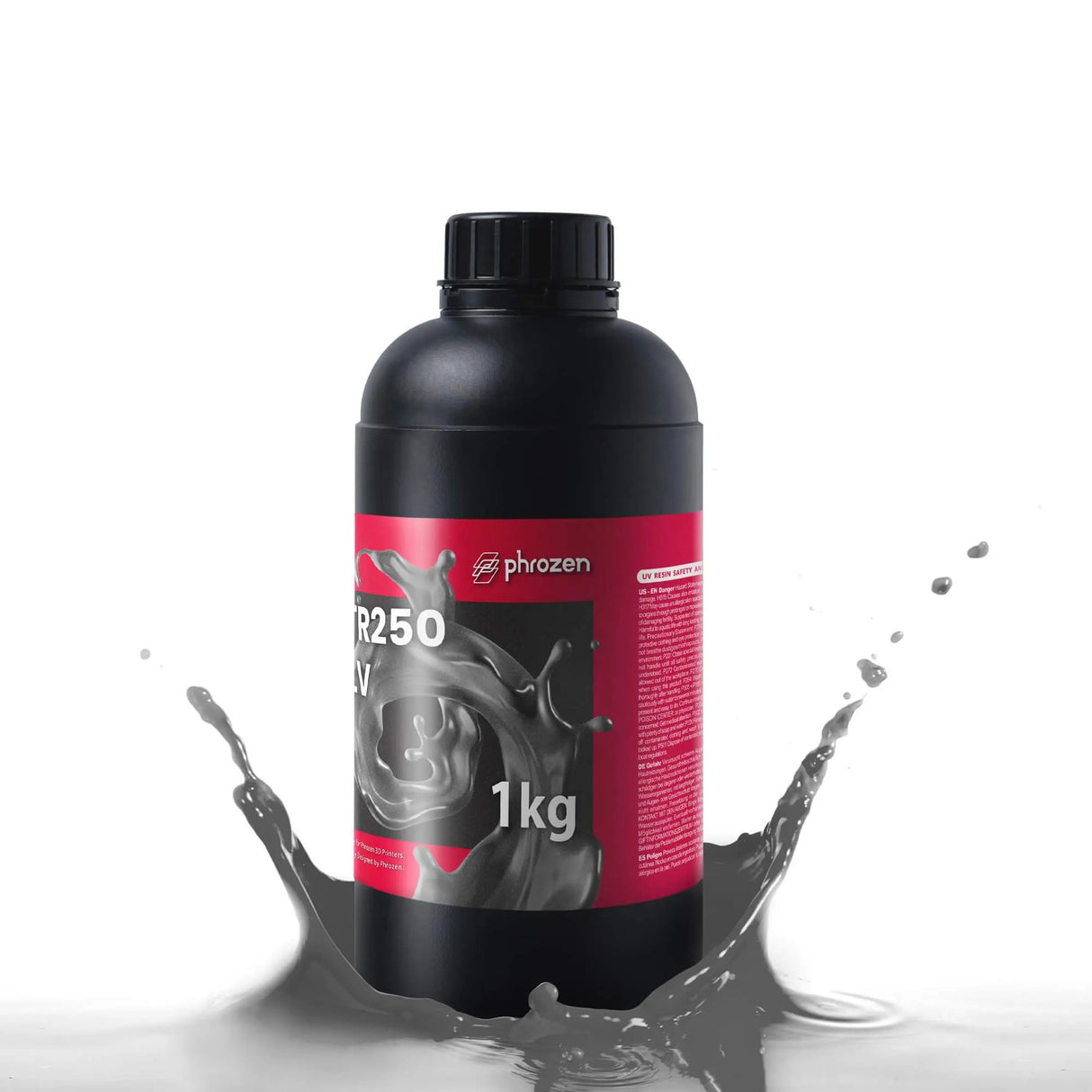

Phrozen High Temp TR250LV 3D Printer Resin: Heat Resistant Engineering Resin
Phrozen High Temp TR250LV is a heat resistant MSLA engineering resin with a heat deflection temperature (HDT) of 120°C at 0.45 MPa, formulated for functional components, tooling, and moulds that must maintain their geometry when exposed to elevated temperatures. Standard photopolymer resins typically begin to soften between 45°C and 60°C under load; TR250LV extends that threshold to 120°C, which opens a class of applications that standard resins cannot serve.
The primary applications for TR250LV are thermoforming and vacuum forming tools, where the mould surface is in direct contact with heated thermoplastic sheet and must hold its shape through repeated forming cycles. Jigs and fixtures used in assembly processes that involve heat guns, soldering, or proximity to heat sources also benefit from this thermal stability. The resin is used in dental workflows for the fabrication of trays and other instruments that are sterilised or exposed to elevated temperatures in clinical environments.
TR250LV is formulated with low viscosity to support accurate layer cure and fine detail reproduction, which is critical for mould surfaces where any surface artefact transfers directly to the formed part. The neutral colour makes surface inspection straightforward and provides a clean background for dimensional measurement.
Recommended layer height is 30 to 100 µm on all MSLA and DLP resin printers. Tensile strength is approximately 55 MPa and tensile modulus approximately 2,800 MPa, positioning TR250LV as a moderately stiff engineering resin with the thermal performance its classification describes.
- Resin type: Heat resistant MSLA engineering photopolymer
- HDT: 120°C at 0.45 MPa
- Volume: 1 kg
- Recommended layer height: 30–100 µm
- Tensile strength: ~55 MPa
- Compatible printers: All MSLA and DLP resin printers
3D Cast is Australia's official Phrozen distributor, stocking genuine High Temp TR250LV resin with fast shipping Australia wide and direct technical support.
Ready to order?
Australia's official Phrozen distributor — genuine product, local stock, expert support.
Add to CartPhrozen High Temp TR250LV — Specifications
Technical data from official Phrozen product data
Phrozen High Temp TR250LV — Specifications
Technical data from official Phrozen product data
Ideal Applications
Thermoforming & Vacuum Forming Tools
Holds its shape in direct contact with heated thermoplastic sheet through repeated forming cycles.
Jigs & Fixtures
Stays dimensionally stable near heat guns, soldering, and other heat sources in assembly work.
Dental Trays & Instruments
Heat resistant enough for trays and instruments that are sterilised or exposed to elevated clinical temperatures.
3D Cast is the official Australian distributor for Phrozen Technology. That means genuine product, local stock, and support from a team that prints with this resin daily. No grey imports, no international shipping wait times.
Guides & Resources
Helpful guides for getting the best results with this resin.
Not sure which resin is right for you?
Talk to us about your project — we'll help you choose.
Frequently Asked Questions
It's a heat resistant MSLA engineering resin built for functional components, tooling, and moulds that must hold their shape when exposed to elevated temperatures, including thermoforming tools, jigs, and fixtures.
It has a heat deflection temperature of 120°C at 0.45 MPa, well beyond the 45 to 60°C range where standard photopolymer resins begin to soften under load.
It works with any MSLA or DLP resin printer at 405 nm. Recommended layer height is 30 to 100 microns.
Full post-cure at the correct temperature and duration is essential to reach the resin's full heat resistance specification. Under-cured parts will have a noticeably lower heat deflection temperature than the rated 120°C.
Yes. TR250LV is formulated for thermoforming and vacuum forming tools that stay in direct contact with heated thermoplastic sheet through repeated forming cycles. Its low viscosity supports the fine detail and clean surface a mould needs.
Keep it at room temperature in a dark, ventilated space away from direct sunlight. After printing, store used resin in a closed, opaque bottle and don't mix it with new resin. Wear gloves and a mask when handling it, and wash any skin or eye contact with plenty of water.
Unopened bottles can be returned, though you'll cover the return shipping if it's a change of mind. Any defective bottle is covered by a free return and refund.
Yes. 3D Cast is Phrozen's official Australian distributor, so you're getting genuine High Temp TR250LV with local warranty and support, not a grey import.
