Phrozen LCD Screen for Mighty Revo 16K MAX: Official Replacement LCD, Complete Kit

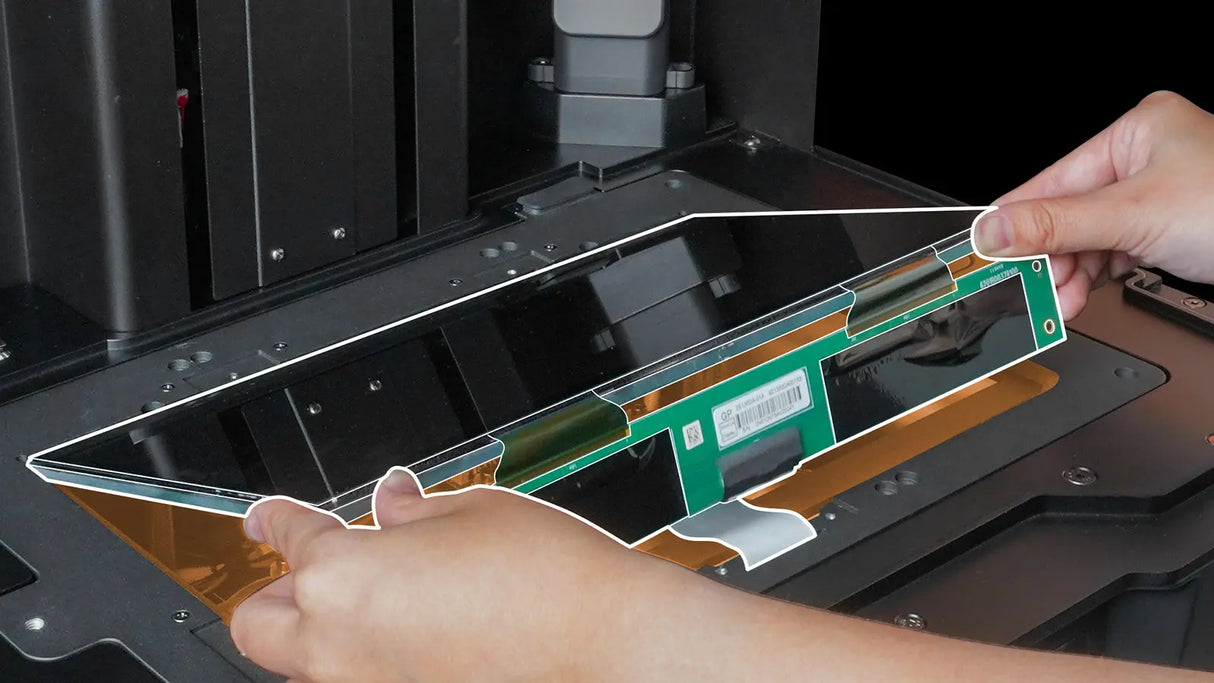

The Phrozen LCD Screen is the official replacement LCD for the Sonic Mighty Revo 16K MAX. The 14-inch 16K Mono LCD panel runs at 15,120 x 6,230 resolution with a 20 x 26 µm pixel size and an expected service life of 2,000 hours. The quick-release LCD design on the Revo 16K MAX allows replacement in approximately 10 minutes without taking the printer apart.
The replacement ships as a complete kit with every component required for the job: the LCD panel itself, a specially coated tempered glass protector, black frame tape, LCD ribbon cable, and acetate tape x 2. Nothing needs to be sourced separately. The coated tempered glass protector allows cured resin residue to be scraped off with a plastic card without damaging the LCD surface, and it maintains 98% UV transmittance so print quality is unaffected.
The Revo 16K MAX tracks LCD lifetime automatically and issues a replacement reminder when the recommended service threshold is reached. Warranty on the LCD panel is 3 months, consistent with Phrozen's standard LCD warranty across the range.
3D Cast is Australia's official Phrozen distributor, stocking genuine Phrozen spare parts for the Sonic Mighty Revo 16K MAX with fast shipping Australia wide and direct technical support.
Why the Mini 8KS
-
01Full Kit Included
The LCD kit includes every component needed for the replacement: panel, glass protector, frame tape, ribbon cable, and acetate tape. No sourcing additional consumables before you can complete the job.
-
0210-Minute Swap
Phrozen designed the Revo 16K MAX LCD for user replacement. The swap takes approximately 10 minutes without specialist tools, keeping downtime minimal for studios and production users.
-
032,000 Hour Lifespan
The 16K Mono LCD is rated for 2,000 hours of print time. At 245 layers per hour, tracking print hours helps plan LCD replacement before print quality degrades.
-
042,000 hrs
LCD lifespan
You may also need
Specifications
Specifications for the Phrozen Revo 16K MAX LCD replacement kit.
Specifications
Specifications for the Phrozen Revo 16K MAX LCD replacement kit.
3D Cast is the official Australian distributor for Phrozen Technology, stocking genuine Phrozen spare parts for the full Phrozen printer range from our Bairnsdale, Victoria warehouse. Warranty claims are managed locally with no international returns required.
Frequently Asked Questions
Common signs include reduced print adhesion, uneven layer exposure, visible dark spots or dead zones on printed parts, or the printer reporting accumulated print hours approaching the 2,000-hour rated lifespan. Check the print hour counter in the Phrozen OS settings menu.
Yes. The kit includes the LCD panel, coated tempered glass protector, pre-cut black frame tape, LCD ribbon cable, and two pieces of acetate tape. No additional consumables need to be sourced before performing the replacement.
Phrozen estimates approximately 10 minutes for the LCD replacement on the Revo 16K MAX. The process does not require specialist tools. A guide is available from Phrozen's support documentation.
LCD panels are consumable components with a finite lifespan determined by print hours, resin chemistry, and operating conditions. Phrozen provides a 3-month warranty on LCD panels to cover manufacturing defects, but panel degradation from normal printing use is expected and is not covered under warranty.
Yes. After installing a new LCD, running the auto-levelling routine and verifying exposure settings is recommended before resuming production printing. Exposure times that were calibrated to a worn LCD may not be optimal for a new panel.
The Revo 16K MAX LCD is designed for user replacement. The swap takes approximately 10 minutes without specialist tools. 3D Cast can provide technical support during the process as the official Australian Phrozen distributor.
If the LCD is being replaced due to end-of-life, it is a good time to also inspect and replace the vat film, check the FEP tension, and clean the build plate surface. The LCD frame tape and glass protector from this kit cover the LCD installation itself.
Yes. The LCD replacement kit for the Sonic Mighty Revo 16K MAX is stocked by 3D Cast, the official Australian Phrozen distributor, and ships from our Bairnsdale, Victoria warehouse via Australia Post.
