Phrozen Sonic Mighty Revo 16K MAX, Wash Mega S and Cure Mega S Bundle
Phrozen Sonic Mighty Revo 16K MAX, Wash Mega S and Cure Mega S Bundle

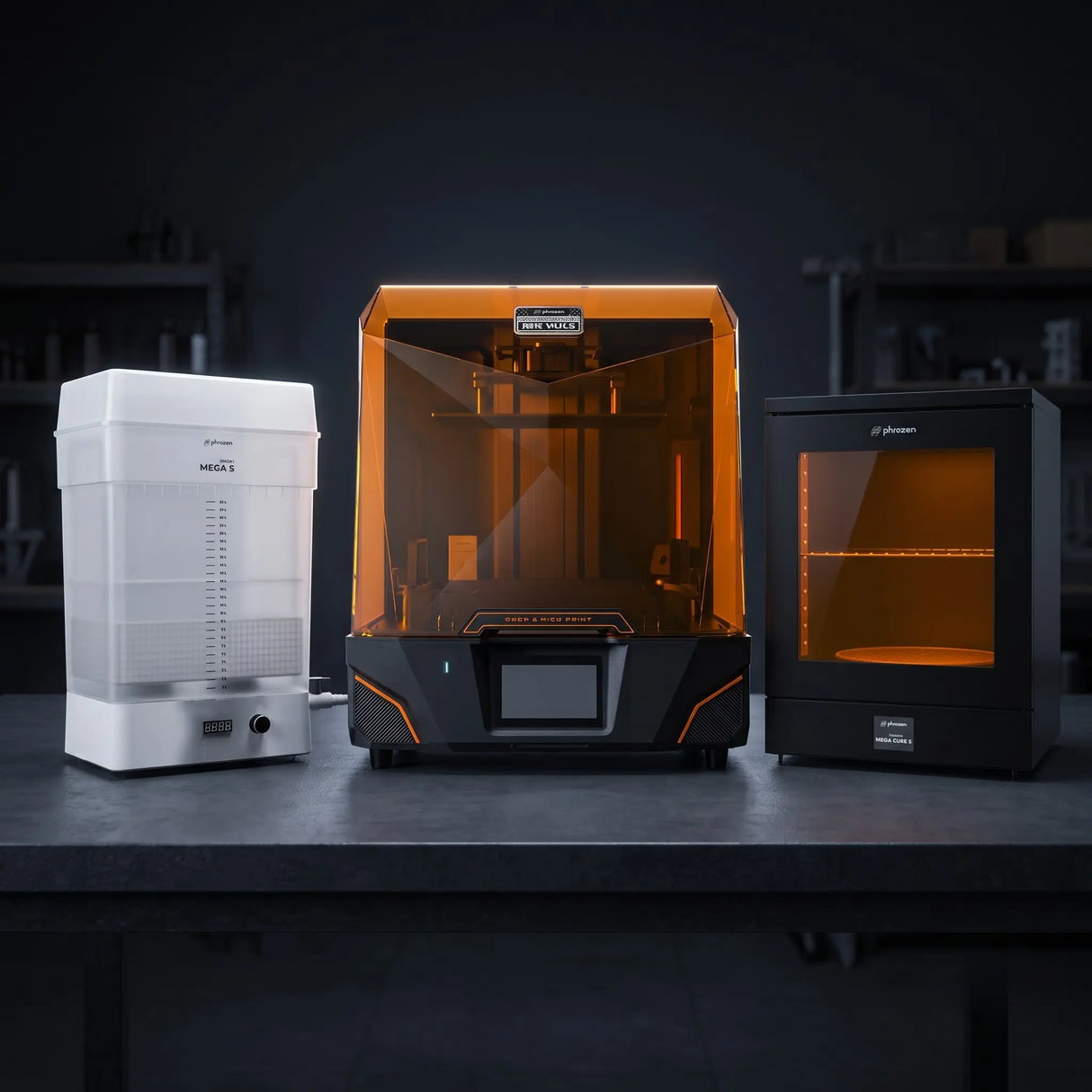

The Phrozen Sonic Mighty Revo 16K MAX, Wash Mega S and Cure Mega S Bundle pairs the large-format 16K MAX printer with matched post-processing stations sized for its build volume. The Wash Mega S accepts the Revo 16K MAX build plate directly without model removal, and the Cure Mega S cures the full print volume evenly in a single pass — providing a complete print-to-finish workflow without compatibility guesswork.
The Revo 16K MAX delivers a 302.4 x 161.98 x 300 mm build volume at 20 x 26 µm XY resolution using a 14-inch 16K monochrome LCD. At 14.7 litres, the build volume covers full-size garage kit models, complete wargaming unit trays at 28 mm scale, engineering enclosures, jewellery casting master batches, and multi-part production runs in a single print, at a resolution that preserves chainmail links, facial expressions, prong settings, and engraving detail across the entire plate.
The dual heating system is the primary technical differentiator at this format size. Standard dual-fan chamber heating raises the internal print environment to 30°C in 5 minutes, adjustable between 25°C and 40°C. An optional heated resin vat extends compatibility to engineering-grade resins up to 4000 cps. Every competing 14-inch printer in this class uses vat-only heating at a fixed temperature. The 2L resin vat holds approximately 2.5 bottles without an auto-feed system, removing the tubing, pumps, and sensors that introduce failure risk during long overnight runs.
The 1080p vertical camera with AI colour correction and UV-free amber LED illumination provides accurate remote monitoring with full build plate coverage and no blind spots. 4-point pressure-sensing auto-levelling, four-edge quick-release nFEP film swap in 3 minutes without tools, quick-release build plate, and quick-release LCD make up a maintenance system built around minimising downtime. The Phrozen GO app handles remote file selection, print control, live view, real-time alerts, and multi-printer management.
Suited to miniature creators and commission studios, GK collectors, jewellery casters running wax pattern production, engineers prototyping full enclosures, and production environments requiring sustained overnight batch output. 3D Cast is Australia's official Phrozen distributor, stocking this bundle with fast shipping Australia wide and direct technical support across all three components.
Built for every kind of serious maker
The Revo 16K MAX delivers 16K mono resolution across a large format build volume. If you have reached the limits of a standard-sized resin printer, this is the next step up.
Miniature painters
Full-scale character busts, hero models, and dioramas in a single print.Tabletop gamers
Complete wargaming unit trays at 28mm scale in a single run.Jewellery makers
High-detail castable prints with prong settings and engraving preserved.Prototype builders
Engineering enclosures and multi-part batches without split printing.Model makers
Scale structures, rolling stock, and fine detail at 20 x 26 µm.Dedicated hobbyists
Professional-grade large-format resin printing without compromise.
REVO 16K MAX AT A GLANCE
-
0120 x 26 µm
16K XY resolution, 302 x 162 x 300 mm
-
022000ml vat
2.5 bottles, no auto-feed failure points
-
03Dual zone heating
25 to 40°C adjustable, 5 min to temp
-
043-min film swap
Tool-free nFEP quick release
DUAL ZONE HEATING
Dual-fan chamber heating raises the internal print environment to 30 degrees Celsius in 5 minutes. User-adjustable between 25 and 40 degrees Celsius. An optional heated resin vat handles high-viscosity and engineering-grade resins up to 4000 cps, reducing the parameter adjustments needed for consistent layer adhesion with demanding materials. Competing 14-inch printers use vat-only heating with fixed ranges. The Revo 16K MAX heats the full chamber and alerts you to temperature anomalies during the print.
Dual zone heating maintains consistent resin temperature across the full chamber
2 LITRE VAT — NO AUTO-FEED
The 2 litre vat holds approximately 2.5 standard resin bottles without an auto-feed system. Auto-feed systems introduce tubing, pumps, and sensors as additional failure points. The Revo 16K MAX removes them entirely. Fill the vat once and run overnight jobs or extended batches without interruption. The wider-grip vat handle improves control during pours and vat changes.
2000ml vat capacity for extended large-format batch runs
POWER-LOSS RECOVERY
Power-loss recovery resumes prints automatically after an outage. A faint layer line may appear near the resume point but the print typically remains usable. On large format prints running 8 to 12 hours, this single feature can save an entire job.
Automatic print resume after power interruption
QUICK RELEASE LCD
The LCD panel slides out and back in without screws or specialist tools. Downtime for a screen replacement is measured in minutes, not hours. Replacement LCD screens are stocked by 3D Cast and available as a spare part.
Tool-free LCD panel replacement in minutes
3-MINUTE FILM SWAP
The four-edge quick-release nFEP film removes and reinstalls in as little as 3 minutes without tools, eliminating the screw alignment and tension adjustment process that makes film replacement a workflow interruption on conventional large-format printers. PFA film for both the heated vat and the quick-release vat is stocked by 3D Cast as a consumable.
3-minute tool-free nFEP film swap
MONITORING, PROTECTION, AND REMOTE CONTROL
A 1080p vertical camera captures the full build plate with no blind spots. AI colour correction makes the image on the Phrozen GO app match the model's actual colour. Foreign object detection scans the vat before each job. Failure detection and residue detection alert you to issues early. Z-axis and LCD service reminders track component lifetime automatically. The Phrozen GO app supports remote file selection, print start, pause and resume, live view, time-lapse recording, real-time alerts, and multi-printer management.
Foreign object detection, maintenance tracking, and remote monitoring via Phrozen GO
Phrozen Sonic Mighty Revo 16K MAX Specifications
Full specifications confirmed by Phrozen Technology. Stocked by 3D Cast, Australia's official Phrozen distributor.
Phrozen Sonic Mighty Revo 16K MAX Specifications
Full specifications confirmed by Phrozen Technology. Stocked by 3D Cast, Australia's official Phrozen distributor.
Three ways to start with the Revo 16K MAX
All options ship from Australian stock with full Phrozen warranty and local support from 3D Cast.
- Phrozen Sonic Mighty Revo 16K MAX
- Resin vat and build plate
- Power cable and accessories
- Full Phrozen warranty
- Phrozen Sonic Mighty Revo 16K MAX
- Phrozen Wash Mega S
- Phrozen Cure Mega S
- Resin vat and build plate
- Power cable and accessories
- Full Phrozen warranty
- Phrozen Sonic Mighty Revo 16K MAX
- Phrozen Wash Mega S
- Phrozen Cure Mega S
- 3 x 1kg Aqua Hyperfine Graphite resin
- 4 x 5L Monocure3D Resinaway
- 1 x 5L Monocure3D RinseOff
Ready to order?
3D Cast is Australia's official Phrozen distributor. Australian stock, full warranty, local support.
Back to top
Jewellery casting masters and wax replacement models printed at 16K resolution
Large format print in progress across the full build plate
3D Cast is Australia's official Phrozen distributor. The Revo 16K MAX is stocked in Bairnsdale, Victoria and ships from Australian stock. No international shipping wait and no customs complications. Full Phrozen manufacturer warranty applies, with direct local support from our team for setup, resin selection, and troubleshooting. Not a grey market import.
Keep your Revo 16K MAX running
Ready to order?
3D Cast is Australia's official Phrozen distributor. Australian stock, full warranty, local support.
Back to topReady to print at 16K MAX scale?
302.4 x 161.98 x 300 mm build volume at 20 x 26 µm resolution. Dual zone heating, 2 litre vat, tool-free maintenance. Stocked by 3D Cast, Australia's official Phrozen distributor, shipped from Bairnsdale, Victoria.
Phrozen Sonic Mighty Revo 16K MAX: Frequently Asked Questions
The Revo 16K MAX has an XY resolution of 20 x 26 µm across a 302.4 x 161.98 mm build plate at 15104 x 6230 pixels. At that resolution, chainmail links, facial expressions on 28mm miniatures, prong settings on jewellery masters, and engraving detail all print with a level of clarity that lower resolution large-format machines smooth out.
The build volume is 302.4 x 161.98 x 300 mm. The 14.7 litre print area covers full-size garage kit hero models, complete wargaming unit trays at 28mm scale, engineering enclosures, and multi-part production batches that would otherwise require split printing and assembly.
Dual-fan chamber heating raises the internal print environment to 30 degrees Celsius in 5 minutes, with user-adjustable temperature between 25 and 40 degrees. An optional heated resin vat handles high-viscosity and engineering-grade resins up to 4000 cps. Competing 14-inch printers use vat-only heating with fixed temperature ranges. The Revo 16K MAX heats the full chamber and alerts you to temperature anomalies during the print.
The four-edge quick-release nFEP film design removes and reinstalls in as little as 3 minutes without tools, eliminating the screw alignment and tension adjustment process that makes film replacement a workflow interruption on conventional large-format printers. The LCD panel also slides out and back in without screws or specialist tools.
3D Cast stocks the full range of Revo 16K MAX spare parts and consumables: heated resin vat, quick-release resin vat, build plate, LCD screen, PFA film for both vat types (3 pcs each), LCD frame tape (2 pcs), and tempered glass LCD screen protector (2 sets). All stocked locally and shipped from Bairnsdale, Victoria.
The Revo 16K MAX is compatible with any 405nm photopolymer resin. The optional heated resin vat extends compatibility to high-viscosity engineering-grade resins up to 4000 cps. Phrozen, Monocure3D, and Resione resins are all suitable. Our team can advise on resin selection for specific applications.
The Revo 16K MAX runs Phrozen OS and is compatible with ChiTuBox and Lychee Slicer. It connects via USB, Wi-Fi, and Ethernet. Internal storage is 8GB with a maximum file size of 10GB, accommodating the large sliced files that 16K layouts produce without the 2GB file size limitations found on competing machines.
The Revo 16K MAX has a substantially larger build volume (302.4 x 161.98 x 300 mm versus 211.68 x 118.37 x 235 mm), dual-fan chamber heating with adjustable temperature, a 2 litre vat, a 1080p vertical camera, and the 3-minute quick-release nFEP film system. The MAX is the appropriate choice for users running large-format jobs or high-volume batch printing regularly.
Yes. The Phrozen Sonic Mighty Revo 16K MAX is stocked in Australia by 3D Cast, the official Australian Phrozen distributor. Ships from our Bairnsdale, Victoria warehouse. No international shipping wait and no customs complications.
3D Cast is Australia's official Phrozen distributor. Every printer comes with full Phrozen manufacturer warranty and direct local support. We stock Phrozen hardware, resins, replacement parts, and consumables locally. We run Phrozen printers ourselves, so when you have a question about setup, resin selection, or troubleshooting, you are speaking to someone with direct experience.
